진공 4각형 고압멸균기 Laboklav 66xx
페이지 정보
본문
생산용 사각형 증기발생기 오토클레이브. Square chamber sterilizer. Rectangular chamber autoclave. 고압멸균기, Steam sterilizer.
소개 : Introduction
다양한 적용이 가능한 사각형챔버의신뢰성 있는 오토클레이브.
내부공간 활용을 극대화하여 큰 아이템을 효과적으로 멸균할 수 있습니다
증기 분포를 균일하게 하고 안정된 결과를 만들 수 있는 구조 입니다.
신뢰성 있는 결과가 필요한 생산공정에 적용할 수 있습니다.
이동형온도센서가 기본으로 설치되어 있다.
각 단계를 편집하여 최적화 할 수 있다.
특징 : Features
• 사각형챔버 Steam sterilizer
챔버가 사각형(square) 형태로 큰 시료를 적재할 수 있음.
대규모의 중앙 멸균 시설 또는 산업체 규모에 적용할 수 있습니다.
7인치컬러 터치스크린 디스플레이, 프린터 내장
내부용량: 334 - 897 리터
자동 수직 슬라이딩 도어
기본 구성:
- Vacuum system (V) and water-saving cooling system
- Flexible media sensor
• 편집 가능한 프로그램
19개의 기본 프로그램을 버튼으로 확인하고 개별 조정이 가능
진공 관련 테스트 프로그램 : Bowie-dick, Vacuum test
• 청결성
고품질 스테인레스재질로강인하며 초순수사용 가능하여 잔류물 없게 운용.
• 혁신적인 디자인
터치스크린 콘트롤러기본장착: 멸균데이터 저장
Pneumatically operated seal: 공압으로운용되어 밀폐성 좋음.
•안전성
Thermolock : 이동형온도센서가 기본 장착되어 액체 멸균 후 열 때 끓어 넘침 방지.
Air Intake Filter: 압력 해제 시 제균한공기를 유입시켜 오염방지.
누전차단기 및 Safety valve 기본 채용
Biohazard: 매 싸이클 멸균하는 배출 필터(FA) 옵션으로 BSL-2 이상에서사용가능.
Emergency stop button: 긴급버튼으로 위험상황 대비
•옵션
- Rapid cooling without/with support pressure (M+S)
- 배출공기필터(exhaust air filtration. FA) : 사용자와 환경을 보호.
0.2um 필터를 매번 멸균. BSL-2 이상 에서 사용을 적합하게 해 줌.
- barrier for gas-tight installation: Bio barrier
- 이동 및 장착 시스템, 바스켓 등
• Piping: Copper/brass or Stainless steel 선택
• Housing: Stainless steel
• Chamber door: stainless steel 316L. A pneumatic drive moves them vertically.
• Seal: 공압으로 조절. 쉬운 수리.
• 진공펌프: 수봉식. 물 절약 시스템
• 전자변, 밸리데이션포트. 7인치터치스트린. 에어필터 장착
• Steam Interlock Door Switch, Safety valve, Emergency stop,
• Safety bar, Water Level Sensor, Pressure monitoring
• Steam condensate and cooling: below 60°C
• Thermal protection of the steam generator

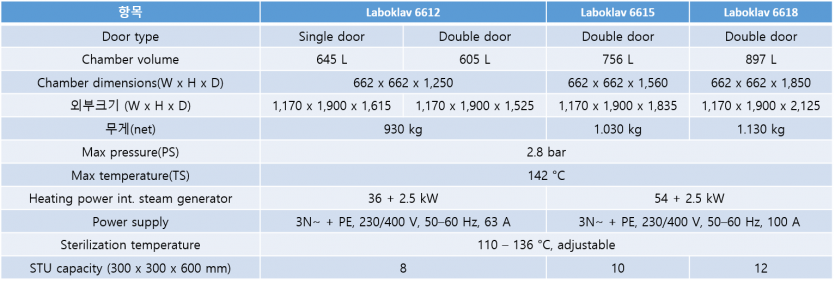

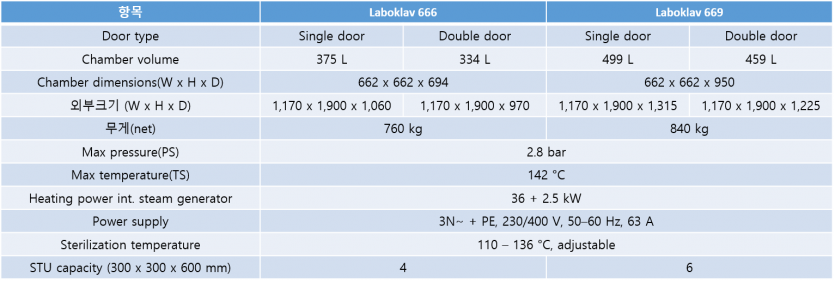

사양: Specification
Option M: Rapid Cooling. 신속냉각으로 cycle time 을 줄여 줌
Option S: Counter Pressure. 압력을 주입하여 끓어넘침 방지하여 cycle tiem줄임.
Exhaust air filtration– to protect the user and the environment. BSL-2 구역에서 사용 가능.
Air Detector. 멸균과정에 영향을 줄 수 있는 공기방울 등을 확인
Bio Barrier. 청정 및 비청정 구역을 분리
Stainless Steel Piping / Triclamp. 부식에 강하고 위생적인 재질.
https://blog.naver.com/ybcokr/223793543726
https://www.shp-steriltechnik.de/en/autoclaves/laboklav-66xx-en
